About

The company is created during 1997. It is privately owned by Petko Vichkov. Its office is located in Bulgaria, which is a part of European Union. At the same time, most of the products, partially or fully developed by the company are sold internationally. The following section will shortly present the 5 most important products of the company. Then in the section for current projects we will mark what we are currently engaged with and in the section for complete portfolio we will present in details with pictures all products that we ever worked on.

Products

What we do

During the years Telenet created different software and hardware in various areas like PCB Prototyping, Motor control, Acoustics, Digital sygnal processing, Communications, X-Ray imaging.

Here follows list of the five most important projects with short explanation that you can read when you click on the title.

PhPNP softwre for Pick & Place machine

Our latest project: PhPNP software for Pick and Place machine for prototyping (small quantities of PCBs). Our goal is a Pick and Place machine as easy to use as possible. With the possibility of mounting from 0201 to large LQFP or BGA chips (up to 40x40mm) with maximum precision. More here: PhPNP

ViewNoise accoustic camera

As an own product, Telenet Ltd is working on both hardware and software of an acoustic camera, named ViewNoise. Precizely, ViewNoise is a device, consisting of a video-camera and microphones array. It sends information to a software, which visualizes the sources of sound on the video background. More here: ViewNoise

PCB prototyping software

PCB prototyping software, together with several designed and developed by Telenet controllers, are working with different machines arround the world.

Gunshot localization system software

Telenet completed the software part of a system for gunshot detection and localization. The system is normally installed in protected areas in order to avoid poaching. Upon detection of a gunshot, the microphone stations send event information to the server. There, the location of the shooter is calculated and sent to the guards.

PH200 Computer telex system

Telenet manufactured telex box with Client/Server Communication System. It was used for sending and receiving telex messages through the public telex communication network.

PH2004 communication system

PH2004 is Client/Server Communication System for sending and receiving telexes, faxes, emails, SMS-s and voice calls (VoIP).

Running Projects

PCB prototyping

2021 - 2025

PhPNP - Pick & Place Machine

Pick & Place machine for PCB prototypes (small series PCB boards 1-10). The easiest to use PCB SMT machine. The software includes advanced digital video processing technologies to create the most user-friendly and refined user interface. More here: PhPNP

2007 - 2025

PCB Prototyping Software

Our software is specifically designed for PCB (Printed Circuit Board) prototyping, using desktop CNC machines. It now includes several common machining functions. Is is high quality software that is both extremely accurate and user friendly, with a very clear and simple to use interface utilizing pop-up menus, function buttons and high quality graphics.

2018 - 2025

PhESpindleStrl - Electronic Spindle Controller

Designed and developed to work with PCB prototyping machine with electrical tool change of the spindle. It opens and closes the spindle's collet when necessary.

2015 - 2025

CNC Motion Controller - 32 bit

This controller is dedicated for our PCB prototyping software and is a replacement of our 16 bit controller. It is working with PCB prototyping machine with USB connection. It is based on ARM M4F@150Mhz MCU (Freescale/NXP, Kinetis K60) with USB insulation. It is designed to work with PhSTdrive & PhACdrives.

2012 - 2025

PhSTdrive - Smart Stepper Drive

Smart DSP based stepper drive with closed loop dual servo (Linear and Rotary encoders) and temperature compensation. It works with our PCB prototyping software and PCB prototyping machine with linear scale and rotary encoder, but supports also "calibrated screw" mode (w/o linear scale). The internal resolution is 0.1um (0.004mil).

2010 - 2025

PhACdrive - Sensorless, AC&BLDC Drive

DSP based vector controled sensorless spindle drive for AC spindles (33mm Alfred Jaeger or SycoTec). Speed Range: 83.3Hz-2000Hz (5000-120000 RPM) or BLDC motors 3Hz-450Hz. Spindle's power rating: Up to 650W (10A).

2008 - 2015

CNC Motion Controller - 16 bit

CNC Motion Controller for our PCB prototyping software (USB). It is based on 16bit@30Mhz MCU (Freescale, S12). It is designed to work with PhSTdrive & PhACdrives.

Acoustic camera

2016 - 2025

ViewNoise software

ViewNoise is the software for our Acoustic Camera and Sound Source Localization and Separation System, which works under Windows 7/8/10 (x64). The ViewNoise software, the microphone array and the data acquisition controller have been developed as a single system. In offline mode, it is possible to comment on the recording and use slow motion with a frame rate of 24000 frames per second. More here: ViewNoise

2018 - 2025

Microphone Array MA64_UB530

The microphone array is specialy designed and manufactured to work with ViewNoise software. It contains 64 MEMS microphones and Data Acquisition Controller (USB2.0/3.0 based).

Complete Portfolio

All
PCB Prototyping
Acoustic camera
Communication
Others

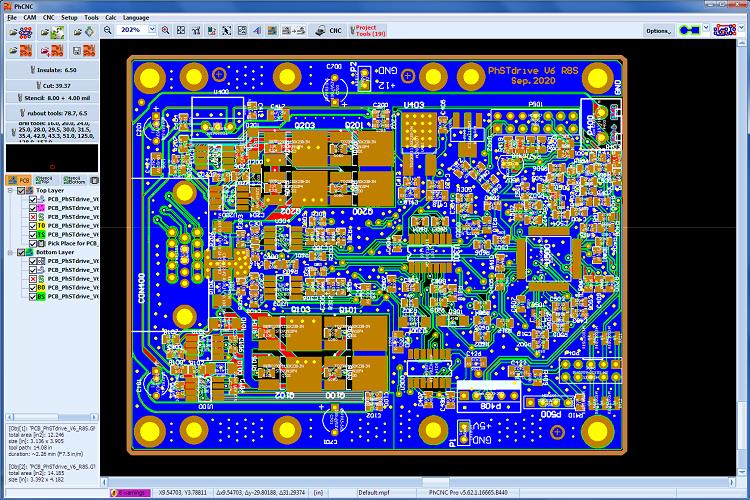

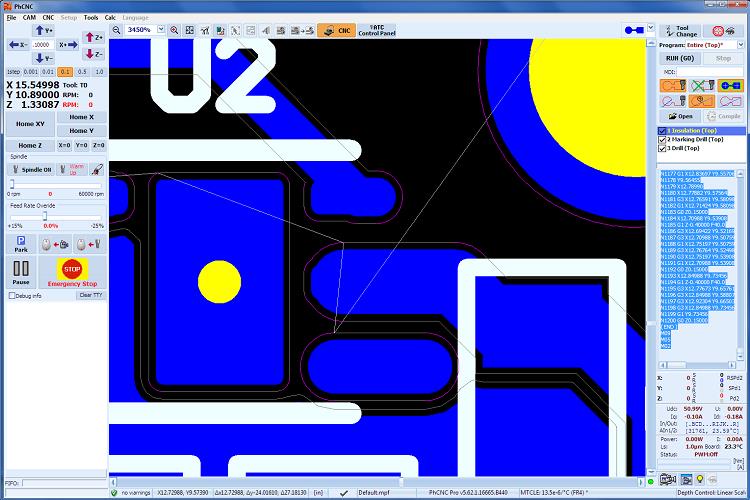

PCB prototyping software

2007 - 2021

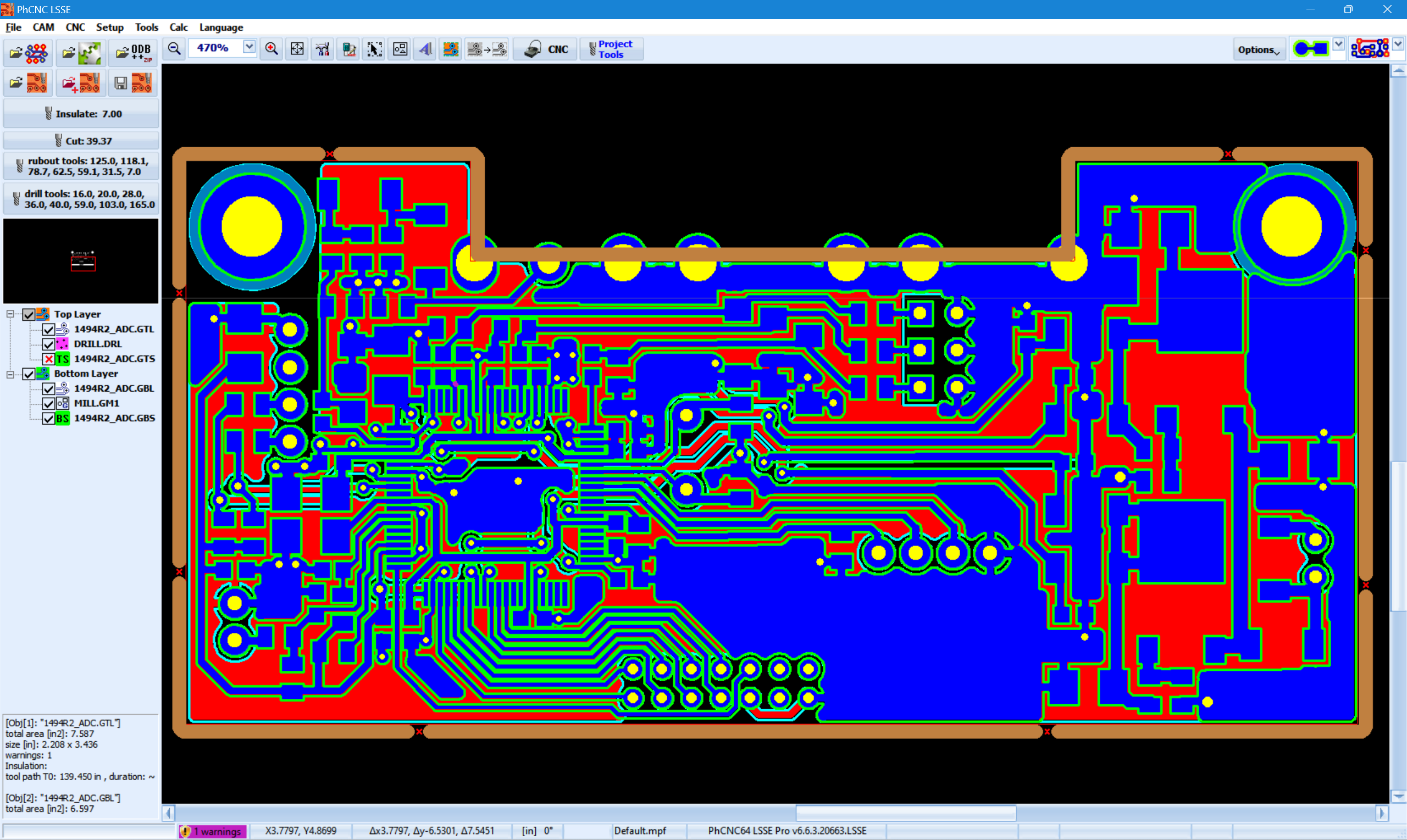

Our PCB prototyping software is specifically designed for PCB (Printed Circuit Board) prototyping, using different CNC machines. It now includes several common machining functions. Is is high quality software that is both extremely accurate and user friendly, with a very clear and simple to use interface utilizing pop-up menus, function buttons and high quality graphics.
The software has two modes of operation - the CAM mode and the CNC mode. The CAM mode is where you can open your files and edit the final layout of your prototype. Here, you can also specify the tools, which will be used when the prototype PCB is being produced by the machine. In the CNC Mode, the user can execute the programs that have been generated by the software to control the machine and some other advanced functions. Note that you can switch between the two modes at any time. With machine's video camera/microscope you will be able to measure and inspect your project.

List of available operations in the CAM mode:
File import - Gerber RS-274X files; Excellon Drill and Definition files; AutoCAD DXF 2D files; CAM350 files
Project files - Load / save / import project files (PHJ) in case of repeated projects machining
Object manipulations - Copy/ Delete/ Select/ Deselect/ Move/ Rotate/ Group/ Ungroup of objects and groups
Undo / Redo - Undo and redo for all object operations
Insulation - Insulation traces with up to 8 insulation tools
Rubout - Assign rubout regions. Rubout with up to 16 tools (8 rubout tools + 8 insulation tools)
Remove spikes (IPD) - Remove residual copper that remains as spikes (Insulation Problem Detector)
DRV & FI - Automatic detection of design rules violation (DRV) & forced insulation (FI) option for the problematic areas
Breakout tabs - Insertion of small interruptions of the cutout contour that allow the ready board to remain firmly attached to the main work piece
Vector text - Allows insertion of simple vector text into the design or as a separate project
Holes and pads insertion - Insertion of holes and pads

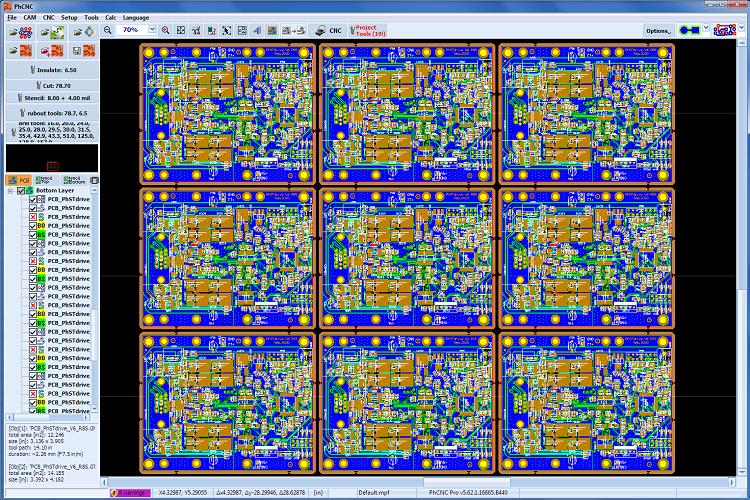

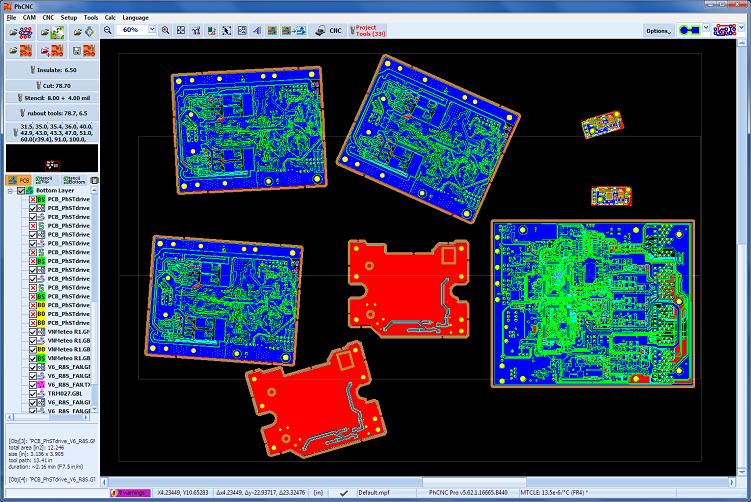

Panelization - PCB panelization
Gerber Export - Export gerber & drill files
Print - Print gerber files
Contour selection - Select inner / outer tool diameter compensation for all cutting operations
Visualization modes - Various modes of visualization of the project layers
"Machining window" - For machining of a pre-selected area of the project or processing of oversized projects along X axis
"Peck" mode - "Peck" mode solution for all high aspect ratio machining (up to 10 mm depth)
Tools selection - Selection of tools for insullation, rubout, drill, cutout and stencil
Switching CAM & CNC mode - One click switching between CAM & CNC mode

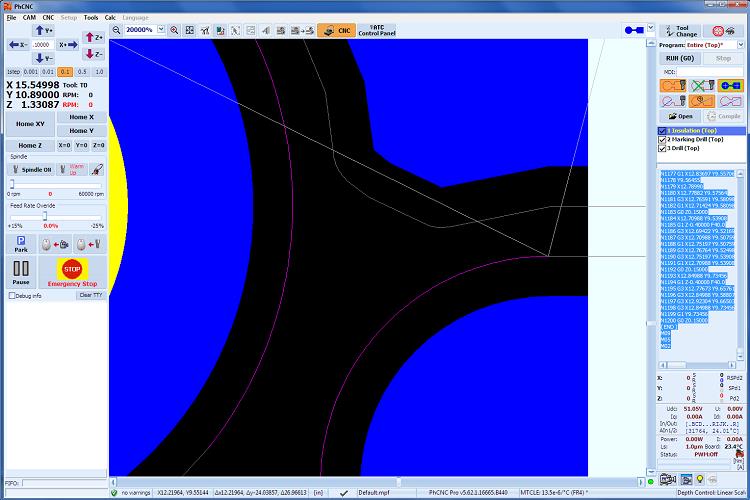

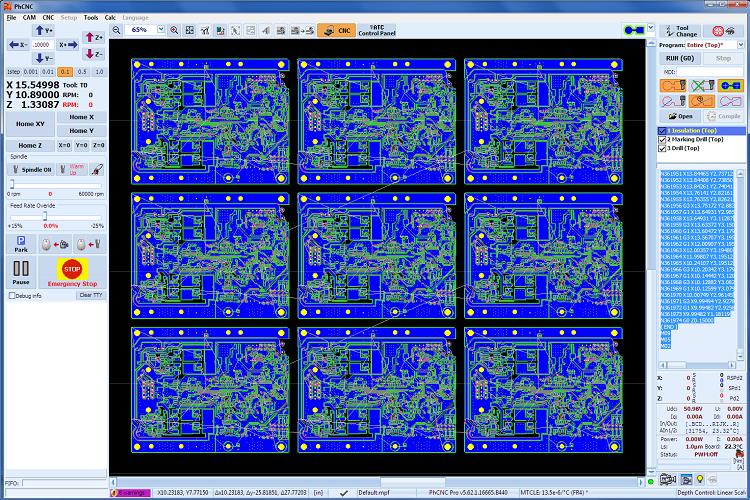

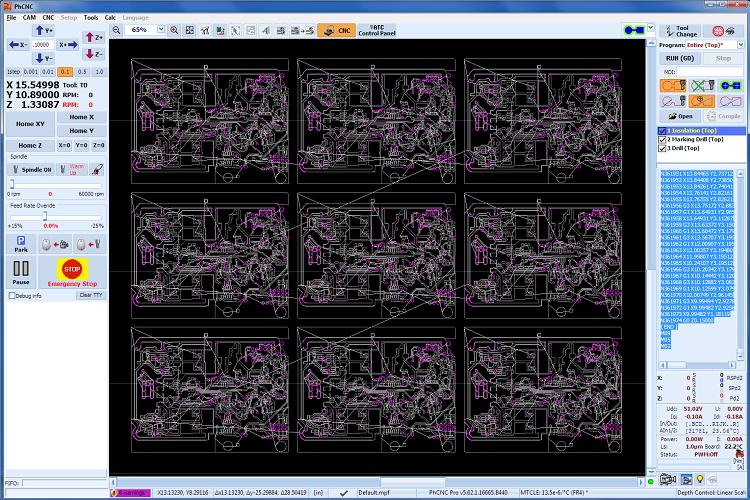

List of available operations in the CNC mode:
Tool change - Model dependent
Р Р†РІР‚вЂњР вЂћ Automatic change and calibratinon of the tools without any operator's activity
Р Р†РІР‚вЂњР вЂћ Manual change and automatic calibration of the tools
Insulation program - Program for tracks and pads insulation
Rubout program - Program for removing of excessive copper rubout for the selected regions
Drill program - Program for dirilling and / or cutting of the project holes
Cutout program - Program for cutout with breakout tabs (if inserted)
Stencil program - Program for cutout of stencil
Batch program execution - ATC models only - Executes all generated programs for the top or bottom layer
Fiducial registration - For project positioning and matching of top and bottom layers
Quality control - Model dependent
Р Р†РІР‚вЂњР вЂћ Positioning and measurement with camera / microscope
Р Р†РІР‚вЂњР вЂћ None (if no camera installed)
Machine control programs - Industry standard G & M codes ASCII, PHJ job files
Periferal devices start/stop - Spindle and vacuum start-stop (Program controlled, manual override available)
Feed rate control - Program controlled, manual override available
Spindle speed control - Program controlled, manual override available
Dispenser - Solder Paste Dispenser with Automatic Dot Size measurements
Auto Fiducial Registration - Fully Automatic Fiducial Registration; Assisted Fiducial Registration; Manual Fiducial Registration;
2D Fiducial Transformation - 2D Fiducial Transformation
JIG Fiducal Registration - JIG Fiducal Registration
Multi JIG Fiducial Registration - Multi JIG Fiducial Registration
Surface Scan - Surface Scan
MODBUS Interface - MODBUS-TCP Slave mode. Allows machine integration into SCADA systems (control from MODBUS Master)
PhBASIC API - Allows machine control from PhBASIC application (PhBASIC is part from our PCB prototyping software!)

Go Back

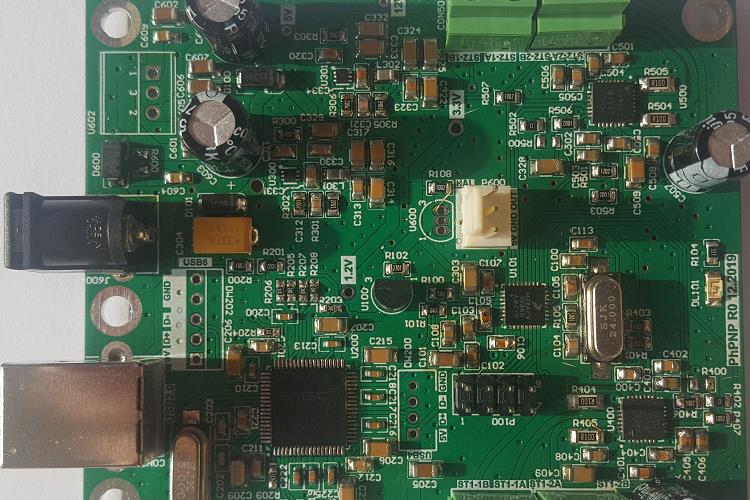

PhPNP - Pick & Place controller

2018 - 2021

Pick & Place module for our PCB prototyping software. It has USB hub for 2 usb cameras and MCU for control one stepper motor and one vacuum pump and HAL sensor for home position.

Go Back

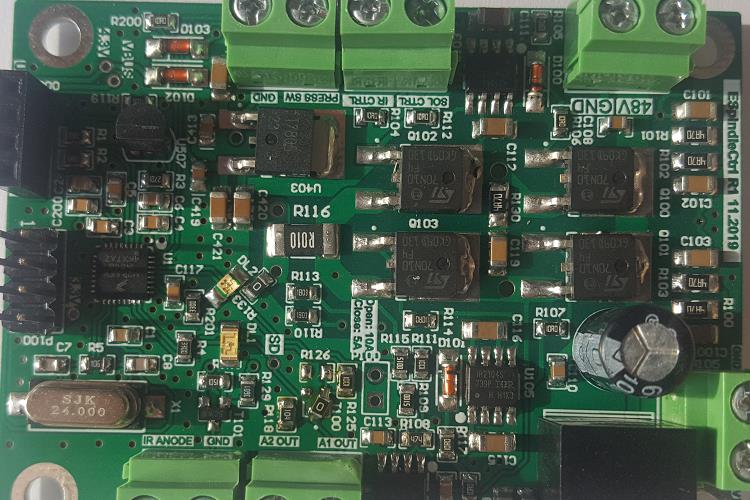

PhESpindleStrl - Electronic Spindle Controller

2018 - 2021

Electronic module for Electric Spindle Control (for Alfred Jaeger spindles with electric tool change control) with current limiter (protection).
Power requirements: 48V @ 5A or 10A (jumper selection)

Go Back

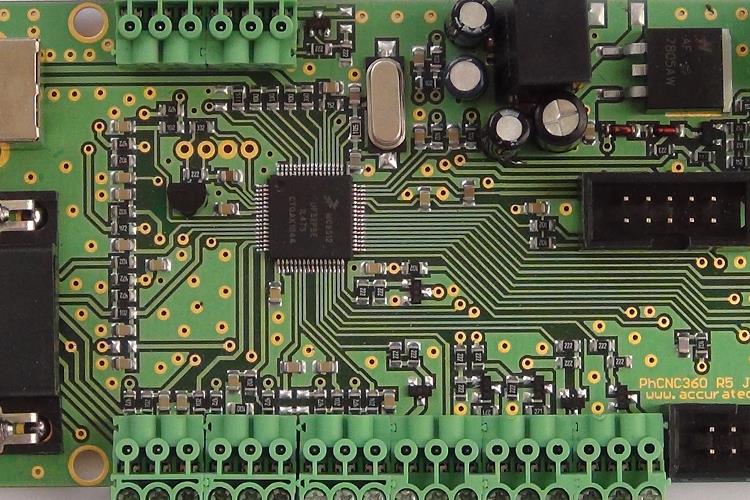

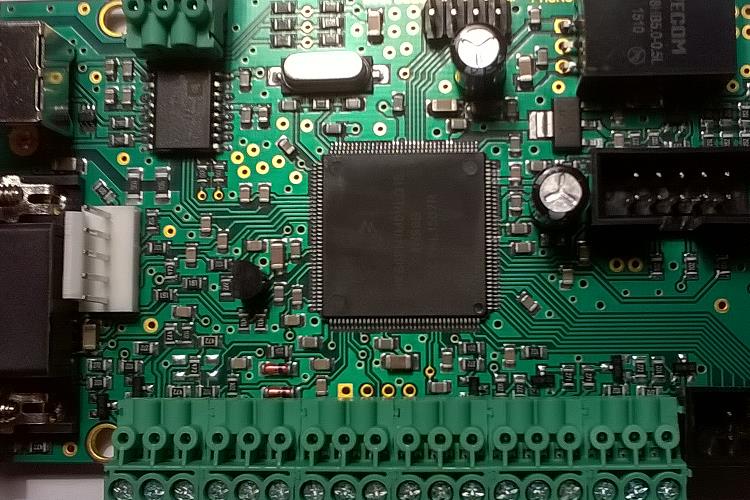

CNC Motion Controller - 32 bit

2015 - 2021

CNC Motion Controller for our PCB prototyping software (USB). It is based on ARM M4F@150Mhz MCU (Freescale/NXP, Kinetis K60) with USB insulation. It is designed to work with PhSTdrive & PhACdrives.

Go Back

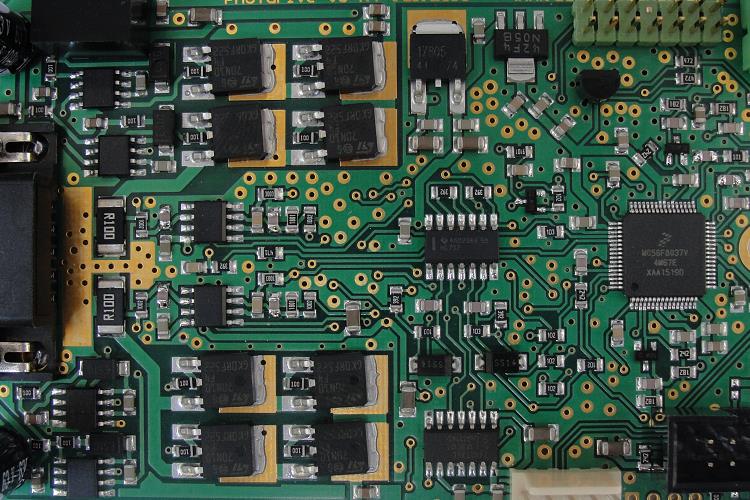

PhSTdrive - Smart Stepper Drive

2012 - 2021

Smart DSP based stepper drive with closed loop dual servo (Linear and Rotary encoders) and temperature compensation. It supports "calibrated screw" mode (w/o linear scale). The internal resolution is 0.1um (0.004mil).

Go Back

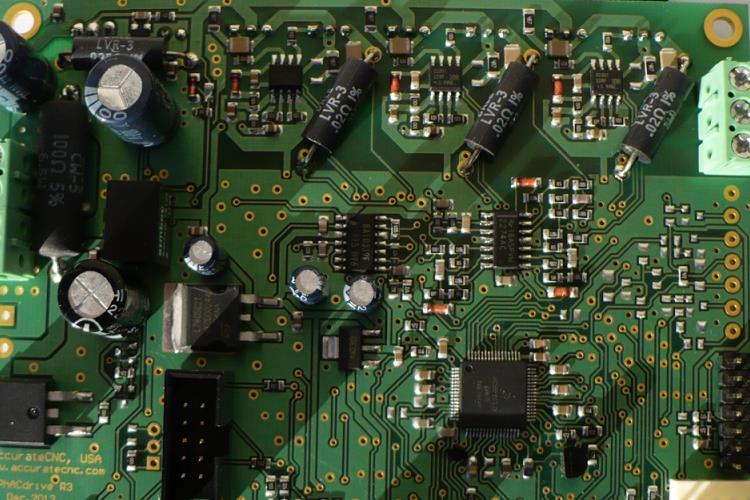

PhACdrive - Sensorless, AC&BLDC Drive

2010 - 2021

DSP base vector control sensorless spindle drive for AC spindles (33mm Alfred Jaeger or SycoTec). Speed Range: 83.3Hz-2000Hz (5000-120000 RPM) or BLDC motors 3Hz-450Hz. Spindle's power rating: Up to 650W (10A)

Go Back
CNC Motion Controller - 16 bit

2008 - 2015

CNC Motion Controller for our PCB prototyping software (USB). It is based on 16bit@30Mhz MCU (Freescale, S12). It is designed to work with PhSTdrive & PhACdrives.

Go Back

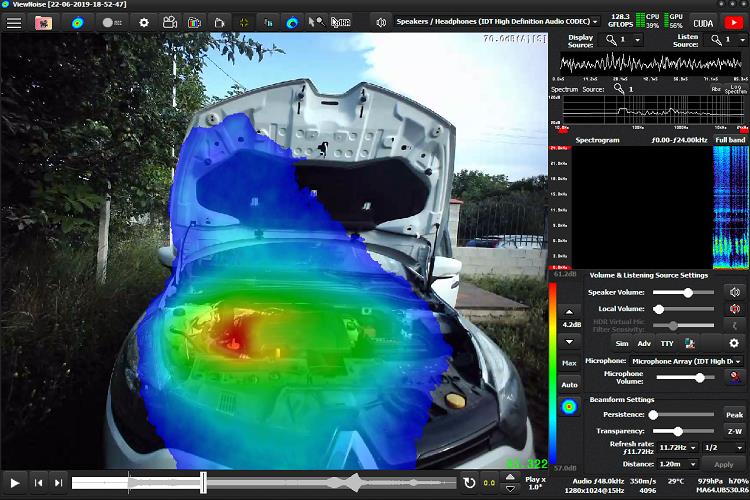

ViewNoise software

2016 - 2021

ViewNoise is our data acquisition & visualization software for Windows 7/8/10 (x64). The ViewNoise software, the microphone array and the data acquisition controller have been developed as a single system. ViewNoise software automatically updates the controller firmware. Virtually all functionalities are available both in real time and offline. In offline mode, it is possible to comment on the recording and use slow motion with a frame rate of 24000 frames per second.
ViewNoise features:
- Data acquisition & visualization (Realtime & Offline).
- Beamforming.
Displays the sound picture superimposed on the video image from the integrated camera. Dynamic range, transparency, etc. can be changed. Calculating the sound image requires a huge amount of calculation, so to unload the CPU, ViewNoise can use the available GPU. ViewNoise can use CUDA on nVidia GPUs or OpenCL on nVidia / AMD / Intel GPUs. The resolution of the beamforming picture can be selected by the operator (from 80x60 ... 640x480). In offline mode, slow motion picture are supported (up to 24000 audio frames per sec)
- Virtual directional microphone.
Allows you to hear the sound source at the cursor position (mouse).
NOTE:
It is advisable to use headphones for real-time listening!
- Sound Source Separation (Virtual HDR microphones).
The virtual directional microphone does not always give the desired results, especially when the sound/noise sources are close or have a significant difference in volume. In this case, ViewNoise has Virtual HDR microphones. They are positioned by the operator at the positions of the sound / noise sources. ViewNoise separates in real time the sources on which virtual HDR microphones are available, as the sound / noise has a much better SNR than a regular directional microphone.
The maximum number of virtual HDR microphones is 63 (with a 64 microphone array).
- Acoustic eraser
Allows you to suppress the sound source in a certain direction in real time. Up to 64 sources can be suppressed (operated by the operator)
- Video Editing
ViewNoise has video editing and comments functionality.
- Video Export
VideNoise can export video clips in h264 or h265 video formats. It support hardware GPU acceleration available in nVidia, AMD or Intel GPUs

Go Back

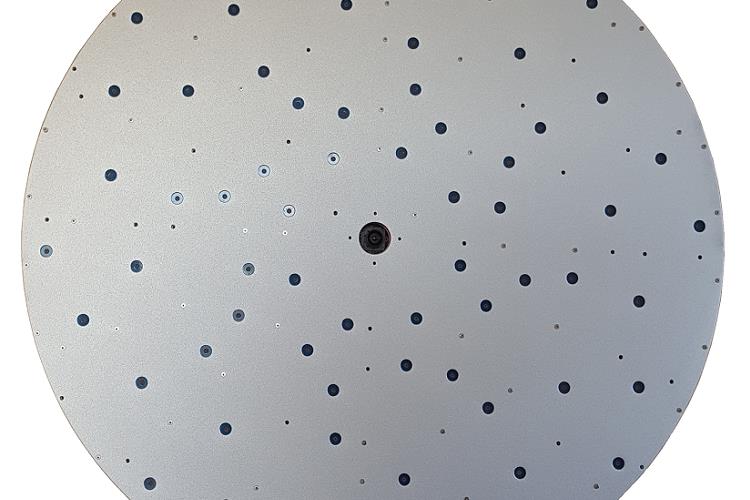

Microphone Array MA64_UB530

2018 - 2021

The microphone array contains 64 MEMS microphones and Data Acquisition Controller (USB2.0/3.0 based)
Parameters of the microphone array MA64.UB530.R6:
- Communication interface with PC: USB 2.0 / USB 3.0 (Windows 7/10 64bit)
- Power supply: 2.5W (self powered - USB 5V @ 500mA)
- Dimensions: 570mm (diameter)
- 64 MEMS microphones (UB Spiral) with the following parameters: 24bit, 48kHz, 50Hz...20kHz
- Color video camera: (16: 9) 3840x2160 @ 30Hz; 1920x1080 @ 30Hz; 1280x720 @ 30Hz (4: 3) 2592x1944 @ 30Hz; 2048x1536 @ 30Hz; 1600x1200 @ 30Hz; 1280x960 @ 30Hz; 1024x768 @ 30Hz; 800x600 @ 30Hz; 640x480 @ 30Hz
- Data acquisition controller with meteo sensors: humidity (Rh%), atmospheric pressure, air temperature

Go Back
PH2004 Communication System for Windows

2004 - 2021

PH2004 is Client/Server Communication System. The PH2004 server is a service (w/o GUI). The PH2004 Client is the GUI for the system. There is no limit for the users.
It support:
- up to 8 telex lines (PH200 Telex Boxes)
- up to 8 Fax Line (V.27, V.29, V.17, V.34, V.34bis)
- POP3/SMTP emails (unlimited mailboxes)
- Mail Server
- up to 4 SMS servers
- VoIP server (SIP protocol based) with supported formats: GSM 6.10 (13.2kb/s), G.723.1 (6.3/5.3kb/s), G.729a (8.0kb/s), ILBC-20 (13.3kb/s), AMR-NB (4.75-12.2kb/s), G.726-40, (40kb/s), SPEEX-NB (18.2kb/s), G726-32 (32kb/s), G726-24 (24kb/s), G711a (64kb/s), G711u (64kb/s), s-linear (128kb/s). The VoIP support voice calls, conference rooms, text messages.

Go Back

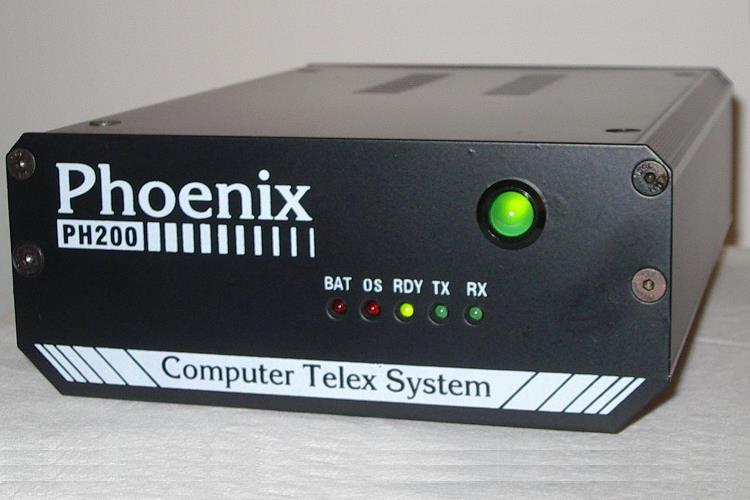

PH200 Computer Telex System

1995 - 2011

PH200 is telex box with dedicated memory (60kB) and backup battery (up to 24h). The supported interfaces are:
- SCVF (Single Channel Voice Frequency) V.21 interface: full duplex modem interface requiring a two wire connection. The modem chip is connected to the telex network through a simple line transformer (complying with the E.U. Low Voltage Directive) with an impedance of 600:600 ohm.
- PH200-SC: Single Current Loop Interface: Simplex, two wire, polarity single current loop circuit.
- PH200-DC: Double Current Loop Interface: Full duplex, four wires interface. There are two undependable current loops Р Р†Р вЂљРІР‚Сљ Transmitting and Receiving res.

Go Back

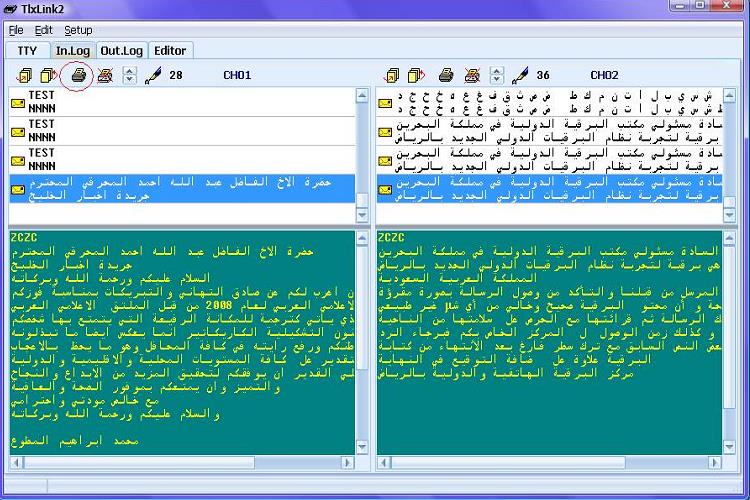

TlxLink2 Communication System (Arabic)

2008 - 2008

Multichannel Telex based communication version specially designed for work with Arabic char set.

Go Back

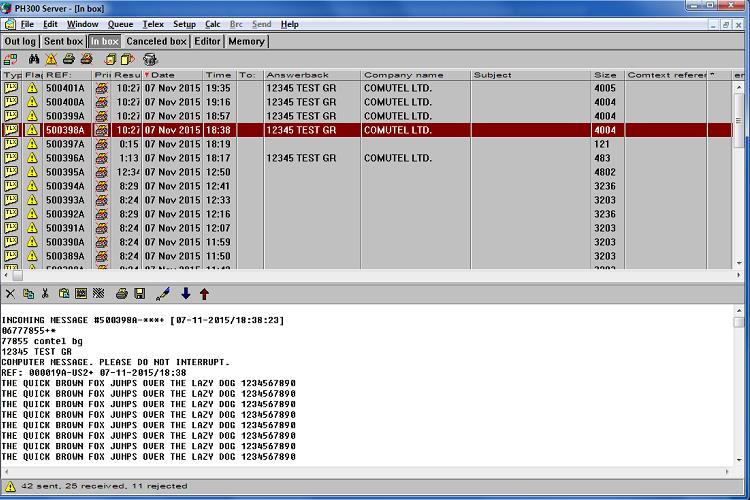

PH300 Communication System for Windows

1995 - 2000

PH300 is Client/Server telex & comtext communication system. The system supports up to 8 telex lines (PH200 Telex Boxes) and unlimited number of clients. Latter replaced by PH2004.

Go Back

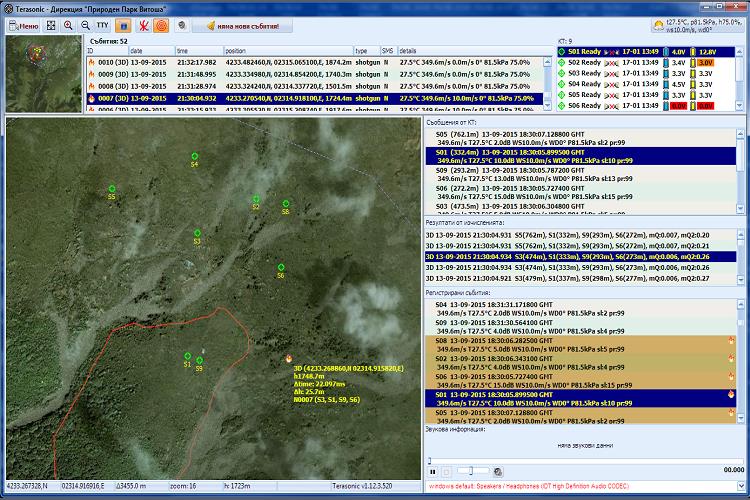

Gunshot Localization System Software

2010 - 2010

Terasonic is a software (server) for gunshot detection and localization. It receives events from microphone stations (equipped with GPS & GSM modules) located on the protected terrain via TCP-IP. The system calculates the possible location of the hunter with accuracy up to 10m performing 2D or 3D localization.

Go Back

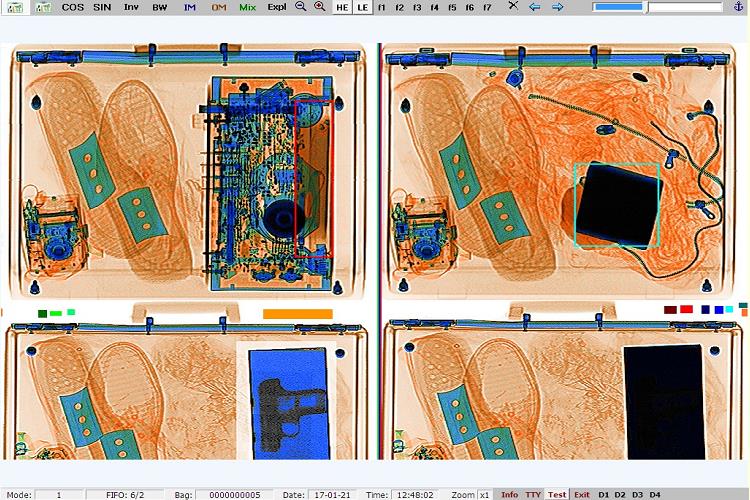

XVision X-Ray Baggage Scanner System

2004 - 2005

XVision is a software for baggage scanner using dual energy method for material detection. It can detect explosives using the calculation of Zeff (Effective Atomic Number). The data acuisition controller has 2 channels 16bit@1MHz ADC. The sensor board (2x8 pcs) contains 64 channels with photodiodes with installed Cs(Tl) scintilators. The image has 512 lines. The software controls the conveyer and has a lot of image processing functions.

Go Back

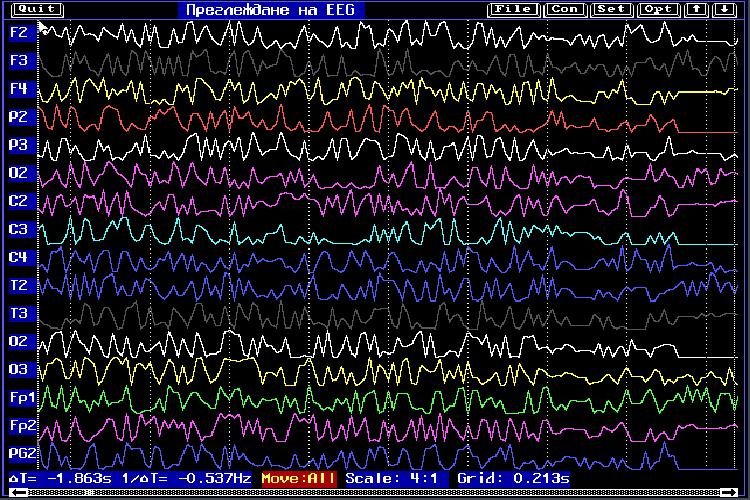

EEG - Electroencephalogram Software for DOS

1991 - 1992

EEG software recording and viewing software. It is DOS based and can record data from 8 channel 12bit 16 channels ADC module.

Go Back

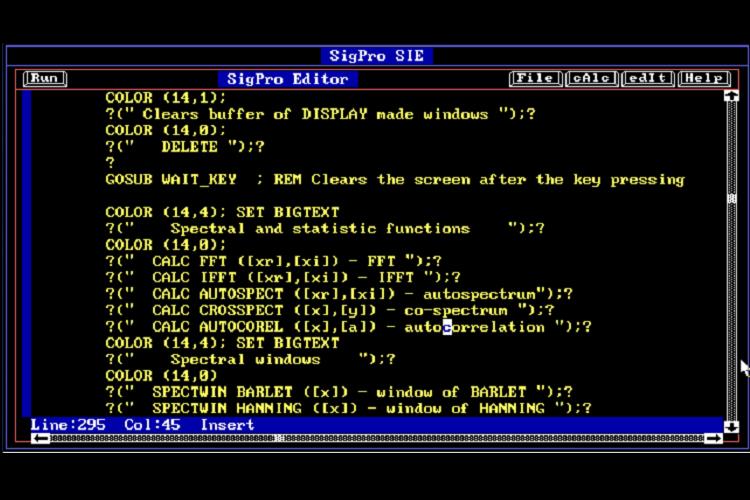

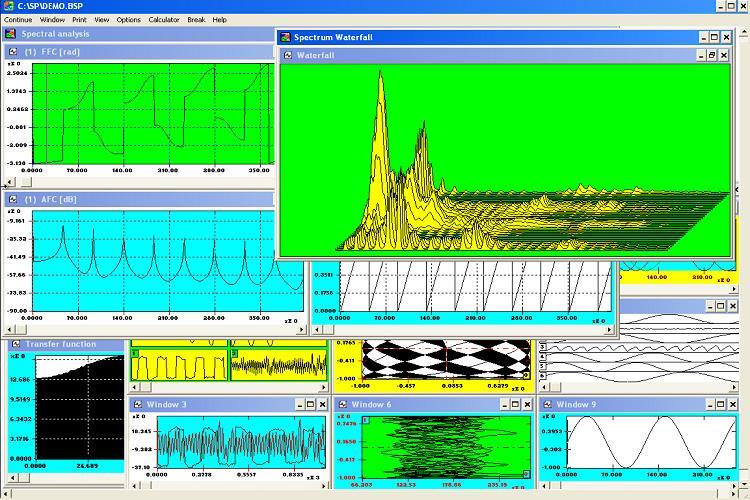

SigPro Signal Processing Language for Windows

1990 - 1992

SigPro is integrated development environment for writing data processing programs. The programming language is BASIC like with vector based operation and integrated graphics operators. It has support for Transputers T805 (Inmos) and DSPs TMS320C40 (TI) for parallel computing.

Go Back
SigPro Signal Processing Language for DOS

1989 - 1990

SigPro is integrated development environment for writing data processing programs for DOS. The programing language is BASIC like with vector based operation and integrated graphics operators. The supported graphic controllers are: CGA, EGA, VGA, Herculles.

Go Back

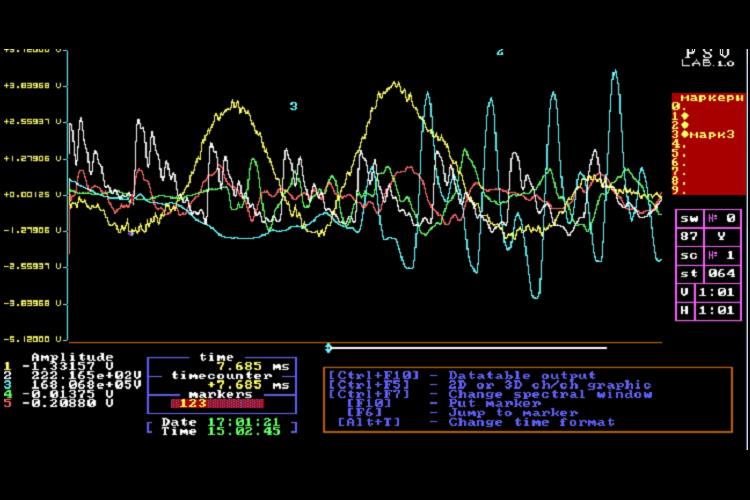

PSVLab - 8 Channel Oscilloscope for DOS

1987 - 1990

Software based 8 channel storage oscilloscope for DOS. It is using 8 channel 12bit ADC board (max sampling rate: 20kHz) or GPIB interface for data acquisition. If is 100% written on assembler (to work on Intel8088@4.77MHz)
PSVLab (8bit) - 8 Channel Oscilloscope for Apple ][ (1987-1988)
Software based 8 channel storage oscilloscope for Apple ][ computers. It is using 8 channel 8bit ADC board (max sampling rate: 20kHz). It is 100% written on assembler (to work on 6502@1MHz)
